Vector databases are specialized systems designed to efficiently store, index, and query high-dimensional numerical representations of data, known as vector embeddings. These databases are crucial for modern AI applications because they enable rapid similarity searches, allowing systems to find conceptually related information rather than relying on exact keyword matches. The core idea is to transform complex data like images, text, or audio into numerical vectors, where the distance between vectors in a multi-dimensional space indicates their semantic similarity.

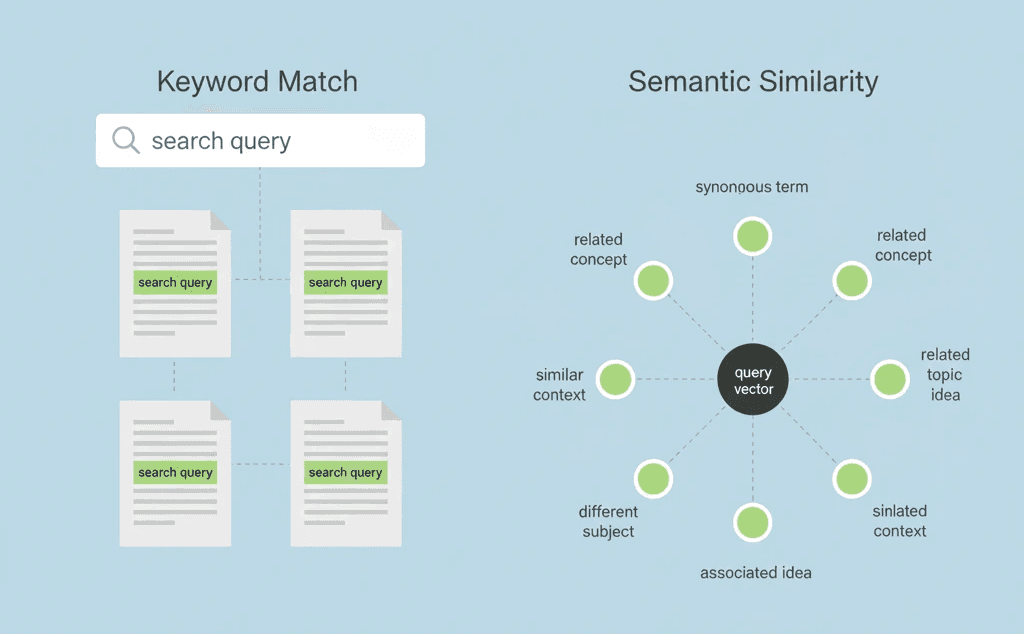

Keyword match vs semantic similarity

What is a Vector Database?

A vector database is a specialized type of database that indexes and stores vector embeddings for fast retrieval and similarity search. These databases are purpose-built to handle the complexity and scale of vector data, which represents unstructured information (like text, images, or audio) in a numerical format.[1][2]

What is a Vector Embedding?

A vector embedding is a fixed-length array of floating-point numbers that captures the semantic essence of unstructured data in a numerical format. These embeddings position similar items closer together in a high-dimensional vector space, allowing computers to understand and process content based on its meaning rather than just keywords.[3][4] For example, a picture of a dog might be converted into a 1,000-dimensional vector where each number represents a feature like "has fur" or "four legs."[4]

Why Vector Databases Matter

Vector databases are essential because traditional relational databases struggle with unstructured data and semantic searches, which are critical for AI applications. These databases bridge the "semantic gap," allowing AI to find conceptual similarities, understand contextual relationships, and process multimodal data efficiently.[3] They are built for speed and scale, outperforming traditional systems by 2-10 times through hardware-aware optimization and advanced search algorithms.[3][4] This efficiency is crucial for applications requiring real-time responses, such as fraud detection or interactive AI systems.[1][3]

How Vector Databases Work

From ingest and embedding to indexing, querying, and ranking

The fundamental process of a vector database involves three key stages: converting data into vectors, efficiently indexing and storing these vectors, and then querying for similarity.

1. Turn Data Into Vectors (Embeddings): Raw, unstructured data (text, images, audio, video) is first transformed into numerical vector embeddings using machine learning models, such as neural networks like OpenAI's BERT for text or CLIP for images.[2][4] These embeddings can range from hundreds to thousands of dimensions, with similar concepts clustering together in the vector space.[3][4]

2. Index and Store Vectors Efficiently: The generated vector embeddings are stored in the database along with any relevant metadata (e.g., title, tags, timestamps).[2][4] Crucially, vector databases use specialized indexing algorithms to organize these vectors. This indexing groups similar vectors together, allowing for much faster retrieval than a brute-force comparison of every single vector.[3][4]

3. Query for Similarity: When a user issues a query (e.g., "Find images similar to this one"), the query itself is converted into a vector embedding using the same model.[2][4] The database then compares this query vector to the stored vectors using similarity metrics to find the closest matches.[2][4] The results are returned, ranked by how semantically alike they are to the query.[4]

This pipeline enables efficient semantic search across vast collections of unstructured data, a task that would be impossible with traditional database approaches.[3]

Vector Database Architecture: A Technical Framework

Modern vector databases employ a sophisticated multi-layered architecture to ensure scalability, performance, and maintainability, particularly for production AI workloads.[3]

Four-Tier Architecture

A typical production vector database consists of four main architectural layers:[3]

• Storage Layer: Manages the persistent storage of vector data and metadata, utilizing specialized encoding and compression, and optimizing I/O patterns for vector-specific access.[3]

• Index Layer: Maintains various indexing algorithms, manages their creation and updates, and implements hardware-specific optimizations.[3]

• Query Layer: Processes incoming queries, determines execution strategies, handles result processing, and implements caching for repeated queries.[3]

• Service Layer: Manages client connections, handles request routing, provides monitoring and logging, and implements security and multi-tenancy.[3]

This layered design, often with disaggregated storage and computing, allows for independent scaling of search, data insertion, and indexing components, efficiently handling billions of vectors.[3]

Consistency in Vector Databases

Ensuring consistency in distributed vector databases is a critical challenge. While eventual consistency is common in large-scale systems for improved availability and reduced latency, strong consistency models are sometimes required for mission-critical applications like fraud detection. Techniques such as quorum-based writes and distributed consensus (e.g., Raft, Paxos) help ensure data integrity.[2][3]

Managing Connections, Security, and Multitenancy

Vector databases are used in multi-user and multi-tenant environments, making security and access control paramount. Measures like encryption (at rest and in transit), authentication, and authorization protect sensitive data.[2][3] Multitenancy is achieved by isolating each tenant's data, often through sharding or partitioning, to prevent unauthorized access while sharing resources efficiently.[2][3]

Indexes: The Heart of Vector Database Performance

Indexes are fundamental to the speed and accuracy of vector databases. They organize vector embeddings in a way that dramatically reduces the number of comparisons needed to find similar vectors, allowing for near real-time search even with billions of data points.[2][4]

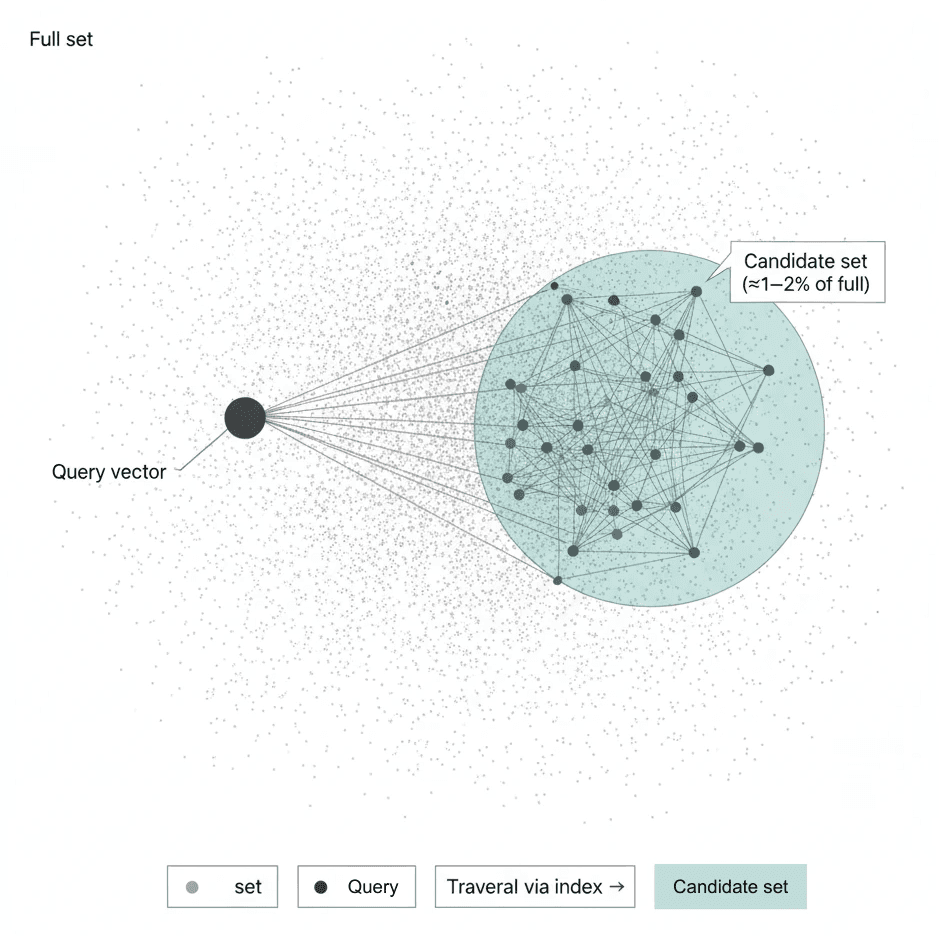

Indexes prune the search space to accelerate similarity search

What is a Vector Index?

A vector index is a data structure optimized for high-dimensional vector spaces that enables fast approximate searches. Instead of exhaustively comparing a query vector to every single vector in the database, the index quickly identifies a subset of vectors likely to be most similar.[1][3]

Approximate Nearest Neighbor (ANN) Algorithms

Most vector databases use Approximate Nearest Neighbor (ANN) algorithms, which trade a small amount of accuracy for significant gains in search speed.[2][3] These algorithms aim to find vectors that are "approximately" the closest, rather than guaranteeing the absolute closest. This trade-off is generally acceptable for AI applications where near-perfect accuracy is often sufficient for practical use.[2][4]

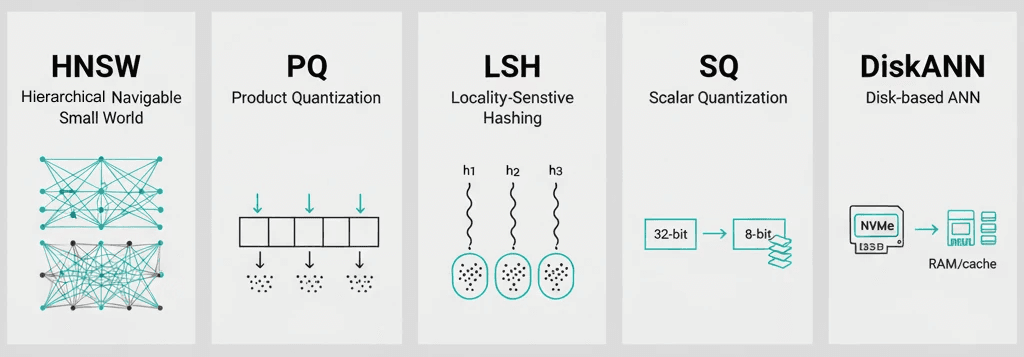

Common ANN indexing algorithms include:

• Hierarchical Navigable Small World (HNSW): HNSW creates a graph-based structure where similar vectors are connected, forming a navigable network.[2][3] It allows for efficient traversal during search, making it one of the most widely used algorithms for vector similarity.[2][3]

• Product Quantization (PQ): PQ is a lossy compression technique that decomposes high-dimensional vectors into smaller subvectors and quantizes each separately.[2][3] This significantly reduces storage requirements (often by 90% or more) but introduces a small accuracy loss.[2][3]

• Locality-Sensitive Hashing (LSH): LSH maps similar vectors into "buckets" using a set of hashing functions.[1][2] When a query vector is hashed, it's only compared with other vectors in the same bucket, speeding up the search considerably.[2]

• Scalar Quantization (SQ): SQ converts 32-bit floating-point numbers to 8-bit integers, reducing memory usage by 75% with minimal impact on accuracy.[3]

• DiskANN: For very large collections (hundreds of millions or billions of vectors), DiskANN enables efficient disk-based vector search by storing most of the index on NVMe SSDs rather than entirely in RAM. This approach offers significant cost benefits by reducing hardware and operational expenses.[3]

Distance Metrics: Measuring Similarity

The choice of distance metric is crucial as it defines how similarity between vectors is calculated. Common metrics include:

• Euclidean Distance (L2 Norm): Measures the straight-line distance between two points in Euclidean space. A smaller Euclidean distance indicates greater similarity.[1][2][3]

• Cosine Similarity: Measures the cosine of the angle between two vectors, focusing on their orientation rather than magnitude. It ranges from -1 (diametrically opposed) to 1 (identical direction), with 0 indicating orthogonality. Cosine similarity is often preferred for text embeddings.[1][2][3]

• Dot Product: For normalized vectors, the dot product measures how aligned two vectors are. It ranges from negative infinity to positive infinity, where a positive value suggests vectors point in the same direction.[2][3]

Different use cases may require different distance metrics; for example, cosine similarity often works well for text embeddings, while Euclidean distance may be better suited for certain image embeddings.[3]

Advanced Query Capabilities

Vector databases go beyond basic similarity search by offering sophisticated querying capabilities:

• Range Search: This refines results by limiting them to vectors with similarity scores within a specific range, useful for finding "similar but not identical" items.[3]

• Filtered Search: Combines vector similarity with metadata constraints, allowing users to narrow results based on specific criteria (e.g., finding visually similar products within a certain brand or price range).[1][2][3]

• Hybrid Search: Combines results from multiple vector fields (e.g., dense vectors for semantic understanding and sparse vectors for keyword matching) or integrates full-text search capabilities. This enables more comprehensive and precise retrieval.[3]

• Grouping Search: Aggregates results by a specified field to improve result diversity, ensuring that results come from different sources rather than multiple similar entries from the same source.[3]

Performance Engineering: Metrics and Scaling

Optimizing vector database performance involves understanding key metrics and implementing effective scaling strategies.

The Recall-Throughput Tradeoff

• Recall: Measures the proportion of true nearest neighbors found among the returned results. Higher recall generally requires more extensive searching, which can reduce throughput.[3]

• Throughput (QPS): Represents queries per second, indicating the rate at which the database processes queries.[3]

Production systems typically balance these metrics, aiming for 80-99% recall depending on application requirements, while maintaining high query throughput.[3] Benchmarking tools like ANN-Benchmarks and VectorDBBench help evaluate and compare performance across different datasets and algorithms.[3]

Scaling Vector Databases

Vector databases can scale to billions of vectors while maintaining performance. This often involves:

• Sharding: Horizontally dividing collections across multiple nodes, with queries sent to all relevant shards and results combined.[2][3]

• Replication: Creating redundant copies of data across different nodes to improve fault tolerance and query throughput.[2][3]

• Serverless Architectures: Modern vector databases are moving towards serverless designs that decouple storage and compute, allowing for optimized costs and elastic scaling. This often involves geometric partitioning of indexes and a "freshness layer" to handle real-time updates while new data is being indexed.[2]

Applications of Vector Databases

Vector databases are the backbone of many modern AI applications across various industries:

• Semantic Search: Enabling search engines to understand the intent and context of a query, returning results based on meaning rather than just keywords.[1][3][4]

• Recommendation Systems: Powering personalized recommendations for products, movies, or content by finding items or users with similar vector embeddings.[1][3][4]

• Large Language Model (LLM) Memory: Providing LLMs with long-term memory and access to up-to-date, domain-specific, or confidential data, which helps mitigate "hallucination" issues.[2][3]

• Anomaly Detection: Identifying unusual patterns in data, such as fraudulent transactions, by comparing new data points to established normal behavior vectors.[1][4]

• Computer Vision: Facilitating image recognition, object detection, and visual search by storing and querying high-dimensional image embeddings.[1][3][4]

• Natural Language Processing (NLP): Used for tasks like text classification, sentiment analysis, and language translation by converting text into vector embeddings for efficient semantic understanding.[1][3]

• Bioinformatics: Storing and analyzing genetic sequences, protein structures, and other molecular data as high-dimensional vectors to aid in scientific discovery.[1][3]

Popular Vector Database Platforms

Several platforms have emerged as leaders in the vector database space, each offering unique features:

• Milvus: An open-source vector database designed for AI and analytics workloads, supporting similarity search at scale and heterogeneous computing.[1][3]

• Pinecone: A managed vector database service that abstracts away infrastructure complexities, designed for real-time applications and large-scale data.[1][2] Pinecone's serverless architecture separates storage from compute, optimizing costs and elasticity.[2]

• Weaviate: An open-source vector search engine with a GraphQL API, offering contextual search capabilities and knowledge graph integration.[1]

• Zilliz Cloud: A fully-managed vector database service built for speed, scale, and high performance in GenAI applications.[3]

Challenges and Considerations

While powerful, implementing vector databases comes with challenges:

• Data Volume and Dimensionality: Managing and querying extremely high-dimensional data at petabyte scale requires robust infrastructure and optimization.

• Indexing Complexity: Choosing and configuring the right indexing algorithm is crucial for balancing accuracy, speed, and memory usage.

• Cost Management: While serverless architectures help, managing the computational resources for vector embedding generation, storage, and querying can still be expensive, especially at scale.

• Maintaining Freshness: Ensuring that newly ingested data is immediately searchable without impacting performance is a significant challenge, often addressed with complex architectural layers like freshness caches.[2]

• Integration with Existing Systems: Seamlessly integrating vector databases into existing data pipelines and AI workflows requires careful planning and compatible APIs/SDKs.[2]

Why This Matters

For readers, understanding vector databases reveals the underlying mechanics of how advanced AI applications deliver intelligent, contextual results beyond simple keyword matching. It shows how systems like recommendation engines or AI assistants "understand" concepts and relationships, making these technologies more transparent and less opaque.

For organizations, vector databases are a strategic imperative for implementing AI at scale. They provide the foundational infrastructure for building responsive, accurate, and scalable AI solutions that can derive meaningful insights from unstructured data. By leveraging these databases, companies can unlock new capabilities in personalized customer experiences, efficient information retrieval, and robust anomaly detection, gaining a significant competitive edge in an AI-driven marketplace.

FAQ

What is a Vector Database?
A vector database is a specialized database that stores, indexes, and searches vector embeddings, which are numerical representations of unstructured data. It enables fast retrieval of semantically similar items, crucial for AI applications.[1][3]

What is the difference between a Vector Index and a Vector Database?
A vector index is a data structure optimized for fast similarity search but lacks the comprehensive data management capabilities of a full vector database, such as CRUD operations, metadata filtering, scalability, real-time updates, backups, and built-in security. A vector database provides a complete solution for managing vector embeddings in production.[1][2]

How does a Vector Database work?
A vector database works by first converting unstructured data into vector embeddings using machine learning models. These embeddings are then stored and indexed using specialized algorithms. When a query is made, it's also converted into a vector, and the database uses similarity metrics to find the most relevant stored vectors based on their proximity in a multi-dimensional space.[2][4]

What are some algorithms used in Vector Databases?
Vector databases employ various Approximate Nearest Neighbor (ANN) algorithms for indexing, including Hierarchical Navigable Small World (HNSW), Product Quantization (PQ), Locality-Sensitive Hashing (LSH), Scalar Quantization (SQ), and DiskANN. These algorithms optimize search speed by organizing vectors efficiently.[1][2][3]

What are the advantages of Vector Databases?
Vector databases offer high-speed similarity searches in massive datasets, efficient handling of high-dimensional and complex data structures, scalability, flexibility with hybrid search, and robust performance for advanced machine learning applications. They also provide comprehensive data management features lacking in standalone vector indexes.[1][3]

How do you query a Vector Database?
Querying a vector database primarily involves performing a similarity search. A query is first converted into a vector embedding, and then the database compares this query vector to stored vectors using distance metrics like Euclidean distance or cosine similarity to find the most similar items. Advanced queries can also include metadata filtering or range search.[1][2]

In which applications are Vector Databases used?
Vector databases are widely used in modern AI applications such as semantic search, recommendation systems, long-term memory for large language models (LLMs), anomaly detection, computer vision, natural language processing (NLP), and bioinformatics.[1][3]
